Overview

The focus of Enviros India has been to address the core challenges of treating high-toxic waste streams. Continuous innovations have been made to facilitate the treatment of high-COD effluents, decrease the ETP footprint, and reduce sludge generation to simplify solid waste management. Enviros India's Electro-Catalytic Oxidation Technology (ECOT®) was developed in-house through relentless R&D efforts to overcome the shortcomings of conventional treatment methodologies and supersede the two-stage chemical & bio-decomposition process.

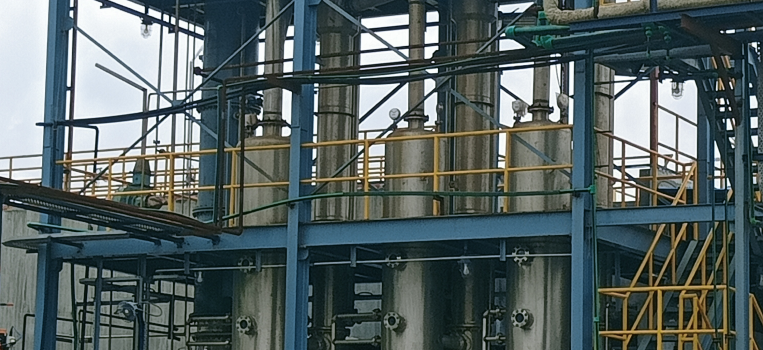

Evaporator Efficiency

The pre-treatment of high-strength mother liquor effluent significantly improves the evaporator’s steam efficiency, reducing its operating costs and maintenance routines. Low-COD condensate is guaranteed while the quality of salt crystallized by the dryer is enhanced.

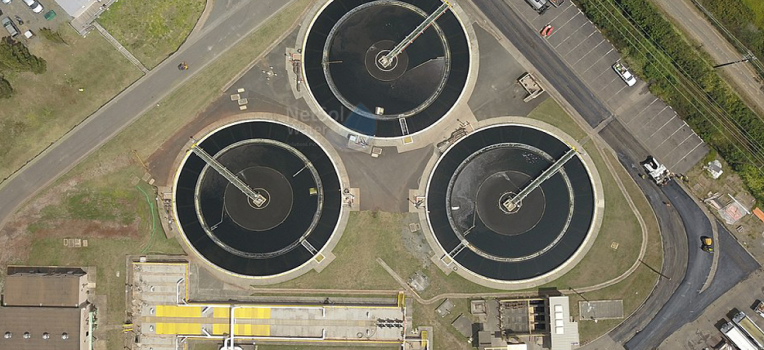

Smaller Civil Footprint

The rapid action of the electro-catalyst has shorter treatment durations that require lesser Hydraulic Retention Times (HRT). Thereby, this requires smaller civil infrastructure and minimizes air blower operation.

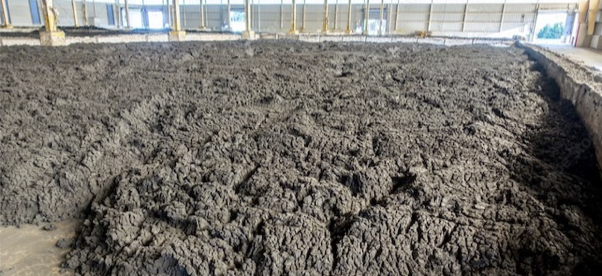

Lower Sludge Generation

The electro-oxidation process and usage of advanced polymer coagulants generate a very minimal sludge volume. This simplifies solid waste management and its associated costs.

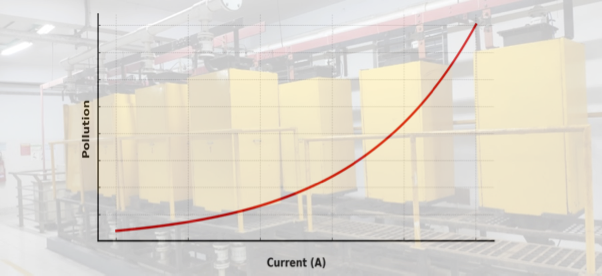

Pollution Shock Loads

Changes in client’s production patterns consequently alter the effluent pollution characteristics. ECOT® is capable of handling such shock loads or surges in pollution levels (COD/TOC) with minor tuning without downtime.

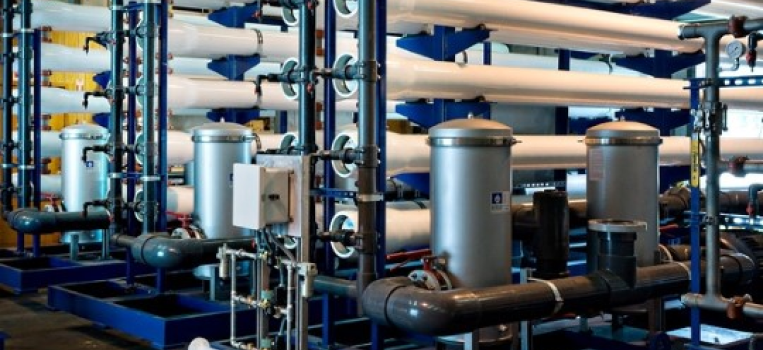

Improved RO
Performance

ECOT® treatment does not use conventional chemicals or biological processes, resulting in improved downstream filtration and reverse osmosis performance due to the absence of chemical or biofouling buildup on membranes.

Less Manpower for Operations

The simpler operational techniques of ECOT® treatment require significantly fewer personnel.

  • CONVENTIONAL
  • ECOT®
  • POLLUTION LOAD
    (COD/BOD)

  • CONVENTIONAL

    System is susceptible to surges (COD shock load) in effluent pollution concentration

  • ECOT™

    ECOT® can handle shock loads of pollution concentration through minor configuration
  • HYDRAULIC RETENTION
    TIME (HRT)

  • CONVENTIONAL

    COD: < 1500 ppm, 2-3 days
    COD: 1500 ppm - 3000 ppm, 3-5 days
    COD: 3000 ppm - 10,000 ppm, 5-16 days
    COD: 15,000 ppm - 100,000 ppm, IMPRACTICAL

  • ECOT™

    COD: < 1500 ppm, < 12 hours
    COD: 1500 ppm - 3000 ppm, < 48 hours
    COD: 3000 ppm - 10,000 ppm, < 96 hours
    COD: 15,000 ppm - 100,000 ppm, < 8 - 15 days
  • ENERGY EFFICIENCY

  • CONVENTIONAL

    Longer duration of air blower operation (due to higher HRT)

    Load on MEE: 1 Kg steam : 1 kg water evaporatored

  • ECOT™

    Minimized air blower operation (reduced HRT)

    Reduced load on MEE with improved steam efficiency; 1 kg
    steam : 3 kg water evaporatored
  • SLUDGE MANAGEMENT

  • CONVENTIONAL

    Greater volume of sludge generation. (0.6kg/Cu.M - Biological; 1.4 kg/Cu.M - Chemical cum Biological)

  • ECOT™

    Lower sludge volume due to non-chemical intervention (lime/alum) and no biomass (0.30 - 0.40 kg/Cu.M)
  • RECYCLING/REUSE

  • CONVENTIONAL

    Lower recovery in downstream RO filteration due to chemical and bacterial fouling of membranes

  • ECOT™

    Long term guarantee on RO membrane performance. Innovative salt recovery process of RO reject water
  • ETP STABILIZATION PERIOD

  • CONVENTIONAL

    Bacterial activity varies widely from time to time and requires 3 - 6 months to achieve full performance of the ETP

  • ECOT™

    ETP stabilization & performance is achievable in a short duration of 30 - 45 days.
  • WORKFORCE

  • CONVENTIONAL

    Conventional treatment requires extensive manpower

  • ECOT™

    ECOT® Treatment requires 50% lesser manpower due to simpler operational techniques
  • ATMOSPHERIC
    CONDITIONS

  • CONVENTIONAL

    8-12 years/Prone to weather condition & temperature

  • ECOT™

    20 years/Not susceptible to weather & temperature fluctuations 35 - 50°C
  • PRE-TREATMENT
    (REMOVAL OF OIL & TSS)

  • CONVENTIONAL

    Extensive physical screening and chemical pre-treatment

  • ECOT™

    Electro-separator for efficient removal of oil and Total ‘Suspended Solids.

Case Study

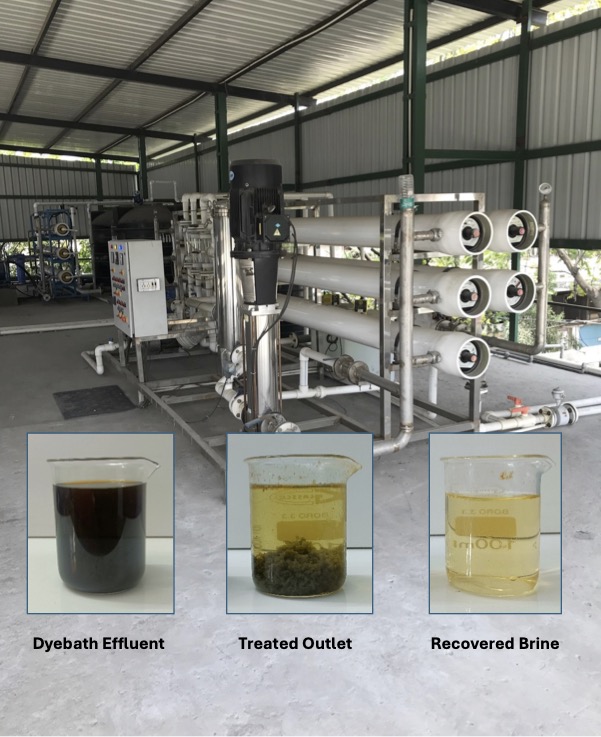

Dyebath Salt Recovery Plant

Complete ZLD of High-Strength Effluent

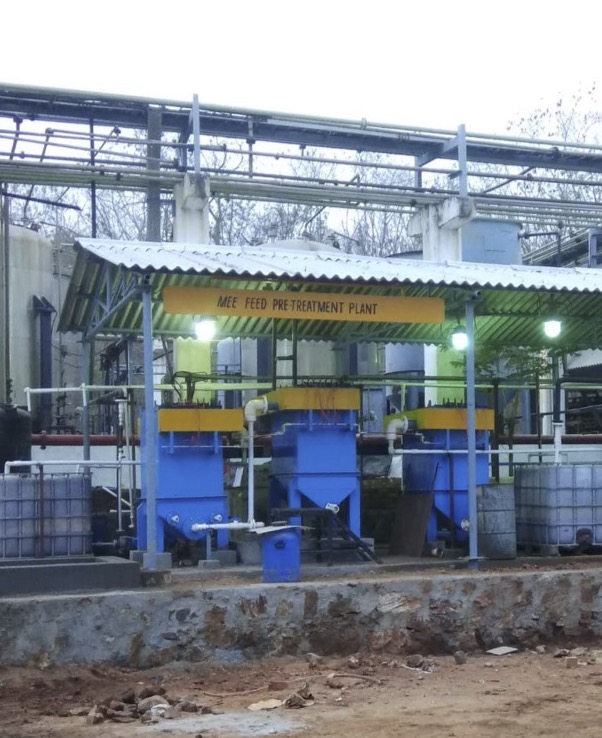

MEE Condensate Treatment

Frequently
Asked
Questions

Can we upgrade an existing ETP facility?

ETPs can be retrofitted with ECOT® treatment to enable technological enhancements while re-utilizing the existing infrastructure and equipment.

Can we install ECOT® ETP with limited area availability?

ECOT® has a faster rate of treatment action, requiring far lesser Hydraulic Retention Time and needing smaller civil tanks. ECOT® can reduce the aeration tank footprint by up to 50% compared to conventional biological systems.

What is the service life of ECOT® reactors?

Enviros India provides up to 10 years of service warranty on our reactors. The client is assured of a trouble-free and low-maintenance operation of the ETP.

Do you provide proof-of-concept implementation?

We provide live Pilot-scale trials for customers to establish results before production-scale installations, if necessary.
